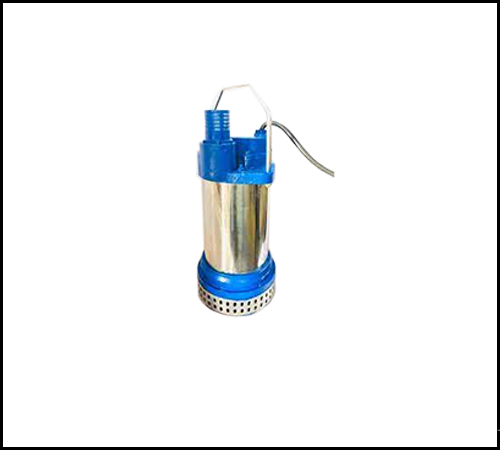

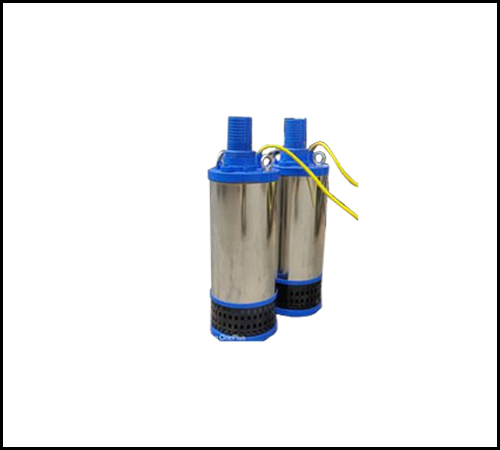

Sub Dewatering Pump
Discription
Features:
- Self Priming Pump Priming required during installation only
- Self Priming upto 8.0 meters at means sea levelfor ifd series & upto 6.0 meters.
- Construction: BarePump/Monoset/Monocoupled
- Shaft sealing gland packing mechanical seal
- Totally enclosed fn cooled motor suitable for wide volatage
- Non-clog type impeller suitable to handle liquid with solid particle & mixtures
- Easy maintanance with interchangable parts
Srandard Specification:
- Power Range: 0.37 to 7.5KW (1.0to10HP) 225 Volt
- Supply: 225Volts,1phase,50Hz AC supply,
415Volts, 3phase, 50Hz AC supply - Sue. XDel. Size: Ø 25x25mm to Ø100x100mm
- Speed: 1500 / 3000RPM
- Total Head: Upto 36 meters Up
- Capacity: to 2000 LPM
- Solid Handling Capacity: Upto 20mm
- Motor-Degree of Protection: Upto 65C
- Motor Class of Insulation: IP54, 'B'class
Application
Industrial
- Effluent Treatment Plants
- Transfer of Petroleum products,Chemicals,Treated / Raw water
- Ash water in Thermal Power Plants
- Waste liquid in Tiles & Marble factories
Domestic:
- Civil construction sites
- Swimming pool filtration
- Dewatering of basement water & trenches
Domestic:
- Pumping Water From Docks, Ports, Vessels
Agriculture:
- Dewatering
Material of Construetion for Dewatering Pumps IFD Series
| S.No. | PART | MATERIAL |
|---|---|---|
| 1 | Impeller(Semiopentype) | GradedCastIron |
| 2 | DeliveryCasing | GradedCastIron |
| 3 | WearPlate | GradedCastIron |
| 4 | Shaft | CarbonSteel |
| 5 | ShaftSleeve | SS410 |
Material of Construction for Self Priming Monoset Pumps IFD Series
| S.No. | PART | MATERIAL |
|---|---|---|
| 1 | Impeller (Non-Clogtype) | Bronze |
| 2 | Casing | Graded Cast Iron |
| 3 | Wear plate | Stainless Steel |
| 4 | Delivery Bend | Graded Cast Iron |
| 5 | Shaft | Carbon Steel |
| 6 | Shaft Sealing | Mechanical seal fitted |
| 7 | Integrated Non Return Valve | Nitrile Rubber with M.S.plate |
| 8 | Bracket | Graded CastIron |
| 9 | Base Frame | M.S. Fabricated |
