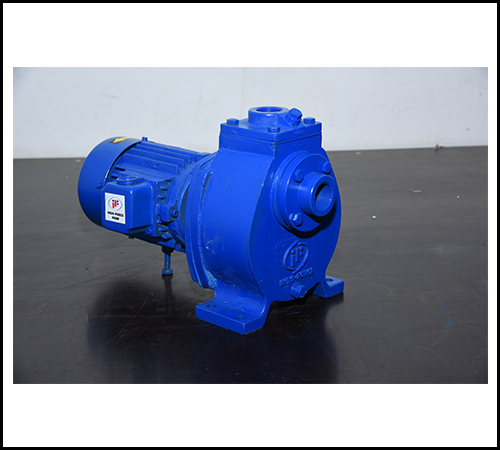

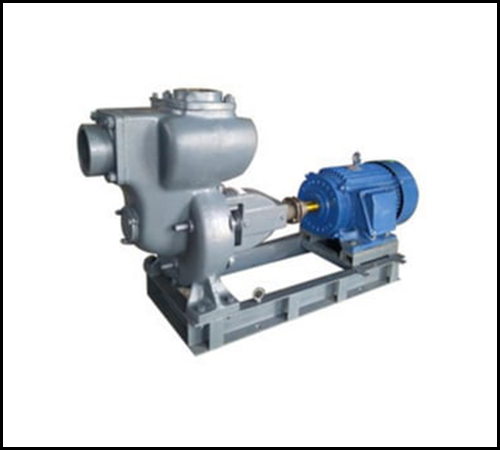

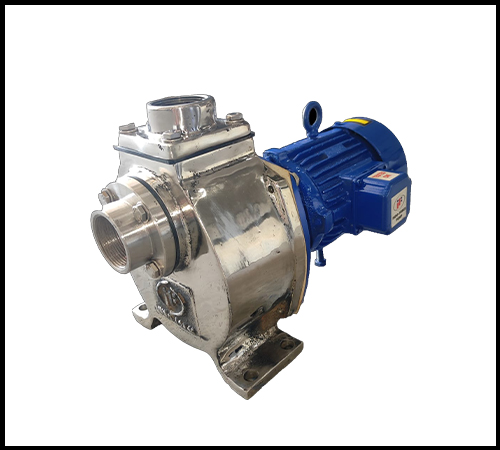

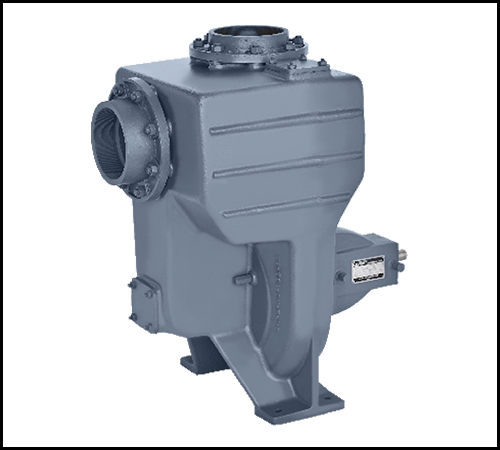

Self Priming Non Clog Mud Pump
Discription
Features:
- Self Priming Pump Priming required during installation only
- Self Priming upto 8.0 meters at means sea levelfor ifd series & upto 6.0 meters.
- Construction: BarePump/Monoset/Monocoupled
- Shaft sealing gland packing mechanical seal
- Totally enclosed fn cooled motor suitable for wide volatage
- Non-clog type impeller suitable to handle liquid with solid particle & mixtures
- Easy maintanance with interchangable parts
Srandard Specification:
- Power Range: 0.37 to 7.5KW (1.0to10HP) 225 Volt
- Supply: 225Volts,1phase,50Hz AC supply,
415Volts, 3phase, 50Hz AC supply - Sue. XDel. Size: Ø 25x25mm to Ø100x100mm
- Speed: 1500 / 3000RPM
- Total Head: Upto 36 meters Up
- Capacity: to 2000 LPM
- Solid Handling Capacity: Upto 20mm
- Motor-Degree of Protection: Upto 65C
- Motor Class of Insulation: IP54, 'B'class
Application
Industrial
- Effluent Treatment Plants
- Transfer of Petroleum products,Chemicals,Treated / Raw water
- Ash water in Thermal Power Plants
- Waste liquid in Tiles & Marble factories
Domestic:
- Civil construction sites
- Swimming pool filtration
- Dewatering of basement water & trenches
Domestic:
- Pumping Water From Docks, Ports, Vessels
Agriculture:
- Dewatering
Material of Construetion for Dewatering Pumps IFD Series
| S.No. | PART | MATERIAL |
|---|---|---|
| 1 | Impeller(Semiopentype) | GradedCastIron |
| 2 | DeliveryCasing | GradedCastIron |
| 3 | WearPlate | GradedCastIron |
| 4 | Shaft | CarbonSteel |
| 5 | ShaftSleeve | SS410 |
Material of Construction for Self Priming Monoset Pumps IFD Series
| S.No. | PART | MATERIAL |
|---|---|---|
| 1 | Impeller (Non-Clogtype) | Bronze |
| 2 | Casing | Graded Cast Iron |
| 3 | Wear plate | Stainless Steel |
| 4 | Delivery Bend | Graded Cast Iron |
| 5 | Shaft | Carbon Steel |
| 6 | Shaft Sealing | Mechanical seal fitted |
| 7 | Integrated Non Return Valve | Nitrile Rubber with M.S.plate |
| 8 | Bracket | Graded CastIron |
| 9 | Base Frame | M.S. Fabricated |
Water Rating Chart
| PERFORMANCE CHART - DEWATERING MONOBLOCK & MOTOR COUPLED PUMPS | |||||||||||||||||||||
| MODEL | KW | HP | RPM | SOLID HANDLING SIZE(mm) | PUMPSIZE | TOTAL HEAD IN MTR | |||||||||||||||
| 3 | 6 | 9 | 12 | 13 | 15 | 16 | 18 | 19 | 20 |
23 |
25 |
26 |
28 |
||||||||
| DISCHARGE LTR. PER MINUTE | |||||||||||||||||||||
| IFD1/2 | 0.37 | 0.5 | 2800 | 5.5 | 25X25 | 115 | 90 | 78 |
|
|
|
|
|||||||||
|
|
|
|
|
||||||||||||||||||
| IFD1.0 | 0.75 | 1.0 | 2800 | 7.0 | 40X40 | 264 | 235 | 205 | 150 |
|
|
|
|
||||||||
|
|
|
|
|
||||||||||||||||||
| IFD2.0 | 1.5 | 2.0 | 2800 | 8.5 | 50X50 | 380 | 360 | 324 | 290 | 175 | 110 |
|
|
|
|
||||||
|
|
|
|
|
||||||||||||||||||
| IFD3.0 | 2.2 | 3.0 | 2800 | 11.0 | 50X50 | 500 | 480 | 465 | 450 | 405 | 390 |
|
360 |
|
|
||||||
|
|
|
|
|
||||||||||||||||||
| IFD5.0 | 3.7 | 5.0 | 2800 | 8.0 | 80X80 | 575 | 510 | 485 |
450 |
420 |
|||||||||||
|
|
|
|
|
||||||||||||||||||
| IFD7.5 | 5.5 | 7.5 | 2800 | 15.0 | 80X80 | 900 | 850 | 835 |
810 |
|
|||||||||||
|
|
|
|
|
||||||||||||||||||
| IFD5.0 | 3.7 | 5.0 | 1440 | 16.5 | 80X80 | 1110 | 1035 | 900 | 810 | 750 |
|
|
|
|
|||||||
|
|
|
|
|
||||||||||||||||||
| IFD10.0 | 7.5 | 10.0 | 1440 | 19.0 | 100X100 | 1960 | 1770 |
1610 |
|
1460 |
|
||||||||||
